Highly complex by comparison to single-shot actions and even by some repeaters, the M1 Garand rifle’s action relies on the fluid interplay between several different critical parts. While it’s important to have some crucial M1 Garand parts on hand in order to make repairs, it’s useless if you don’t know what you’re doing.

These are some of the most common problems, along with some potential fixes.

Just remember, a multitude of factors could be causing any of these symptoms, so if you’re not sure what the cause is, call us before making an errant adjustment to your platform and we’ll help you get to the bottom of it.

The rifle bolt does not close and lock
You load the rifle’s internal magazine and go to release the operating rod, allowing the bolt to travel forward, stripping a round out of the magazine and feeding it into the chamber.

Only that doesn’t happen. Instead, the bolt travels weakly forward and does not lock into place.

Ruling out a clogged chamber or deformed ammo that does not feed properly, your issue probably lies with a faulty part of the M1 Garand’s action.

It is possible that the operating rod or bolt is deformed or that the operating rod spring (op rod spring pictured at right) is worn out. Inspect these parts, replacing any fatigued springs, or the entire operating rod or bolt assembly if they are deformed or binding.

Bolt closes and slam fires
Let’s look at a separate but dangerous issue. Instead of failing to engage, the bolt closes shut - but immediately slam fires.

Likely, you’re working with defective ammunition. But if you’re working with fresh, clean, .30-06 Springfield cartridges, the issue may be one of headspace.

You’ll either need to take the gun to a gunsmith to have the chamber’s headspace adjusted or replace the barrel - but be careful because replacing the barrel does not automatically ensure a proper headspace adjustment.

Trigger breaks but the rifle does not fire
If you pull the trigger and hear a click - leave the action closed and keep the firearm pointed in a safe direction, downrange, for several minutes. You’re probably experiencing a hang fire, a misfire, or have simply dropped the hammer on a defective round.

However, it is also possible that the hammer spring has fatigued or that the firing pin is defective or broken. If you can rule out defective ammo (cycling through a few rounds) and you’re sure the trigger group is working properly, then your course of action should be to replace the hammer spring, hammer spring housing, or firing pin.

The action does not cycle completely: Short recoil


If your rifle feeds and fires, but then the bolt does not retract far enough to complete the cycle and chamber a new round, the issue could fall with a number of your M1 Garand’s parts.

It could be that your ammo is not generating sufficient pressure to cycle the action.

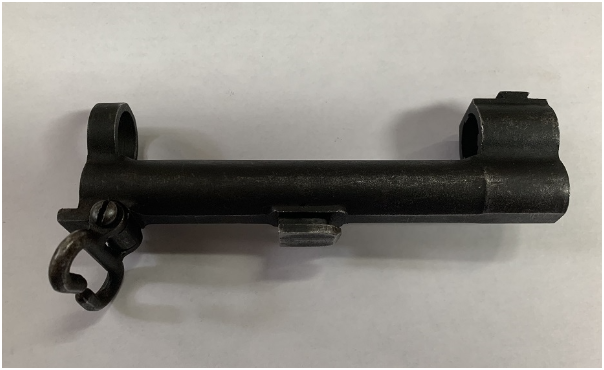

It could also be that that gas port or cylinder (pictured above) is blocked, or that the gas cylinder lock screw is defective, in which case they need to be cleaned or the cylinder needs to be replaced.

A damaged receiver or operating rod could be binding, or the operating rod screw might be fatigued. A problem with the receiver may necessitate a trip to the gunsmith, but if the issue falls with the operating rod or springs, these can be replaced.

Hammer fails to cock, even when the action appears to cycle properly
If your rifle fires and cycles, but the hammer does not cock when the bolt locks forward, there is probably a defective internal component of your trigger group, in which place the entire trigger group should be replaced.

Failure to extract or eject
If your rifle fails to extract or eject spent cartridges, and you can rule out issues associated with the bolt not cycling back far enough to eject or with the cartridges themselves, then the culprit is likely a broken or fatigued ejector pin or spring. Replace these M1 Garand parts and extraction and ejection should recover.

Accuracy suffers
Is your rifle in near-perfect operating order? Have you been firing the same factory loads for years, consistently, but you’re still noticing that accuracy is starting to wander, especially at ranges of 100 yards and greater?

The M1 Garand part you probably need is a new barrel, especially if your rifle has been around the block.

After several thousand rounds, the lands of a barrel’s rifling will probably have worn down sufficiently that you’ll be able to notice minor inconsistencies in accuracy. If this occurs, install a new barrel, check for proper headspace, and you can get back to the range.
